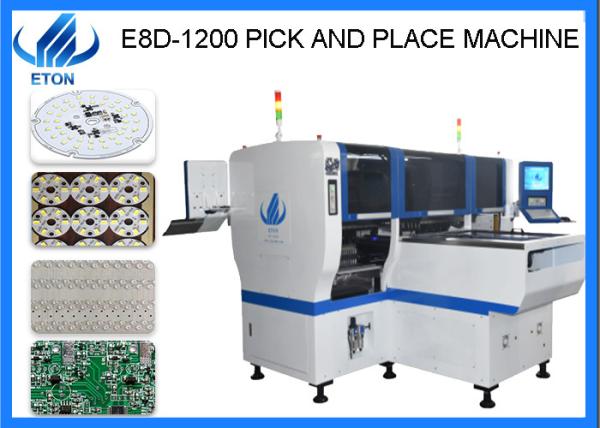

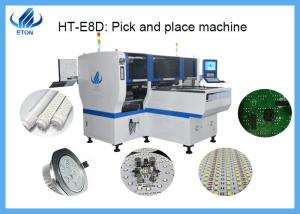

full-automatic machine double module magnetic linear motor multifunctional pick and place machine
1. Introduction of product
Double-module magnetic linear motor multifunctional pick and place machine.
It has 4 PCS cameras to work.(Vision alignment flight identification, Mark correction)
Its max size is 1200*300mm, the min size is 100*100mm.
Group picking and separately placing, separately picking and separately placing.
2. Features
Dual system, dual module multifunctional mounter to produce two different products at the same time.
Mounting components: LED chip, capacitors, resistors, IC, shaped components, etc.
Component: Min.size 0402. Max .height 15mm
Application: power driver, electric board, lens, DOB bulb linear bulb, household appliance, etc.
Electronic feeder feeding system.
Vision alignment flight identification, Mark correction.
Non-stop material re-loading function.
Auto-optimization after coordinates generated, etc.
The speed can reach 90000CPH.
It has 48 PCS double module feeders station.
3. Machine parameter
| E8D-1200 |
| PCB | PCB length width | Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| O.S. | System | Windows 7 |
| software | R&D independently |
| Vision system | No. Of camera | 4 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 90000CPH |
| Feeding system | No. Of feeders stations | 48 PCS single module |
| No. Of nozzles | 24 PCS single module |
| Feeding way | Electric feeder with double motor |
4. Product application
5. Company introduction, exhibition, certificate
6. Package and delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
7. Service
we will send our engineer to your factory to install machine and training freely.
We have service office in India,and have Indian engineer in Delhi and Mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
We can provide the SMT line solution:
1. We provide full SMT solution for you;
2. We provide core technology with our equipment;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.
8. FAQ
(1)Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
(2)what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
(3)This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
(4)What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
(5)How long the delivery?
30 Days.
