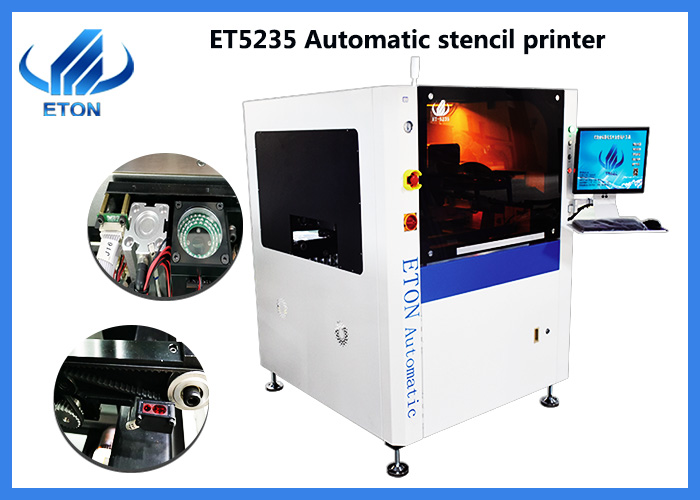

Full automatic PC control easy to operate PCB solder paste printing SMT machine
Machine main features
- PCB transport and clamping system
- The PCB loading direction can be selected and combined freely;
- Unique crafted internal gear conveyor belt to prevent jamming;
- Programmable transport speed control makes PCB stop more precise;
- Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
- Stencil positioning system
- Arch bridge-shaped suspension hanging direct-contact scraper;
- The size of steel mesh is universal, with goof and wide applicability;
- Segmented fixed steel mesh frame.
- Programmable suspension self-adjusting stepper motor drives print head;
- Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
- Slide rail type scraper system, improve operation stability and prolong time;
- Embedded scale, never fall off.
- Easy to learn and easy to use friendly operation interface;
- With good human-machine dialogue function;
- Make program files with teaching and navigation functions, with prompts for each step;
- One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.
- X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side;
- The polarizer is added inside, and the mark different shapes is automatically and accurately grasped, and the upper, lower and coaxial three way uniform light sources.
| Model | ET-5235 |
| PCB size | Max:520*350 mm Min:50*50 mm |
| Transport height | 900±20mm |
| Transport speed | Max 1200mm/s programmable |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s(Excluding printing&cleaning) |
| Control method | PC control |
| PCB transfer overhead height | 10mm |
| Squeegee speed | 6~300mm/sec |
| Cleaning system | Dry,Wet,Vacuum(Programmable) |
| Product changeover | <5Min |
| Stencil separation speed | 0.1~20mm/sec Programmable |
Machine main part
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
Q. What is your usual payment term?
A. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
Q. How long can the delivery date take?
A.If have stock the delivery date is about 20 days, others is according to the actual situation.
