35000cph SIRA 400*350mm PCB SMT Production Line For Bulb

SMT production line

SMT production line features

1. Include automatic pick and place machine, solder paste stencil printer, 8 ovens machine, 0.5m conveyor, Excellent combination
2. From print solder paste to mounting components, the whole smt line is equipment, you just need to decide the product, we give you best suggestion for the production line
3. Flexible. We can provide automatic line or semiautomatic line. It is flexible and decide by you.
4. Much save cost. Buy from one manufacturer save time, save money, much easy for after sales service.

SMT production line parameter

Stencil printer machine ET-S600:

• ET-S600 suitable for max PCB size:250*550 mm, the PCB thickness is 0-50 mm.
• ET-S600 printing speed is 0-800 mm/min
• The repeatability precision is reach 0.01 mm.
• The positioning mode is outside or reference hole.
• Manual feeding board, machine printing, low price, high precision, high cost performance

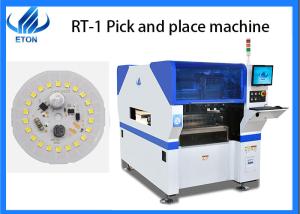

Pick and place machine RT-1:

• Dimension:1200*1930*1500 mm
• Max PCB size:400*350 mm
• Mounting mode: Group picking and separate placing, separate picking and separate placing
• Mounting height: 22mm
• Mounting speed: 30000-35000 cph

Reflow oven machine ET-R8:

• Due to the unique way to transport wind, surrounded by the return air patented design that eliminates the effects of the rail on PCB board to undesirable temperature, on PCB board of heating, it is more evenly and quickly than similar models
• Unique furnaces are the wind structure within different areas of the furnace can be different wind speed difference arising due to structure adjustment, heat uniform.
• Adopting imported high temperature motors, speed by Inverter control, long-term use, quality and stability

Conveyor machine:ET-C500

• ET-C500 is suitable for PCB conveyor, it is apply to connect other SMT machine, install between SMT machine, very basic and useful.

SMT production line application

This SMT production line suitable for max PCB size is 400*330mm. It is widely using for driver board, led bulb, panel, down-light, display, etc.

If you need led tube/led panel/led strip light making machine, we also have other module recommend, please contact details by Whatsapp or Wechat: +8613590151025
