LED Bulb SMT pick and place machine----HT-E5D
Product Features
- ETON LED Pick and place machine adopts magnetic linear motor for machine stable and accuracy.
- HT-E5D with double system, dual module mounting parts, the mounting speed can be reach 80000 CPH.
- Easy operating program, much more convenient, automatic vision makes position fixing more accurate and convenient.
- Multi Feeder option, meet different kinds of LED chips and components.
Machine Parameter
| HT-E5D Technical Parameter |
| Length*Width*Height | 1650mm*2000mm *1550mm |
| PCB Length Width | Max:500*300mm Min:100*100mm |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Position Camera | Vision for the flight identification + MARK correction |
| Mounting repeat Precision | ±0.02mm |
| Mounting Height | <36mm(component max height 20mm) |
| Mounting Speed | 80000 CPH(optimum) |
| Components | LED chip, capacitors, resistors, IC, RGB, shaped components etc. |
| Motion control card module 2 sets | Independent research and development by ETON |
| X,Y,Z Axies Driving | Magnetic linear motor + servo motor |
| No. of feeders | 60PCS |
| No. of nozzles | 16 nozzles |
| Feeder type | Electronic feeder with double motor |
Machine pictures show

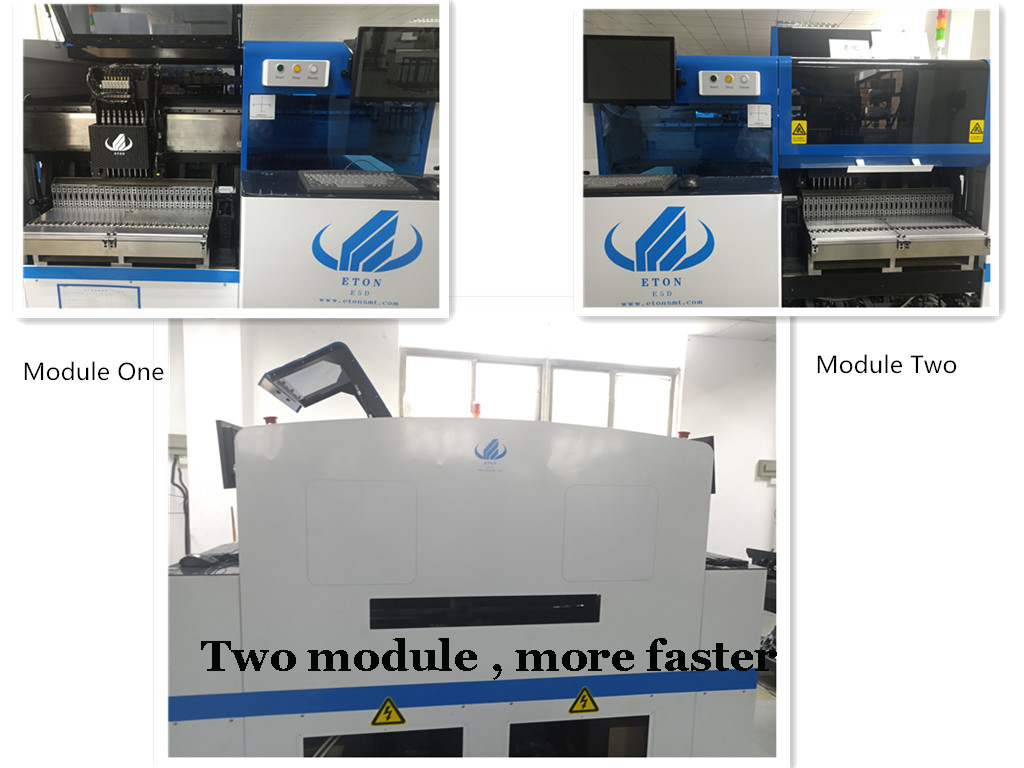

Whole Machine show:
Important part show:
Finished products show
