Product Description
The T9-2S is ETON latest dual track, dual system, ultra high-speed mounting machine for producing LED lead-free soft lamps. It is equipped with a high-speed integrated adjustable mounting head independently developed by ETON, and supports belt mounted LED, 3014, 3020, 2835, 5050, or resistors, capacitors, bridges, etc. Under optimal conditions, the production capacity can reach 500000 CPH.
Feature
- ETON tech adjustable mounting machine placement head:Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED,3014,3020,2835,5050,resistor,capacitor,bridge rectifiers etc. Wide component range.
- Ultra high speed capacity:The mounting machine placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way,excellent optimum capacity reach 5000000 CPH.
- Unique design components leaking detection and individual component refill function:recognition camera record the components leaking position of PCB,and fill the missing component accordingly,realize industry 4.0 unmanned workshop.
Main parameter
| Product name | Mounting machine |
| Model | T9-2S |
| PCB size(mm) | Max:250(±10)*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.05 mm |
| No.of camera | 10PCS |
| No.of nozzles | 136 PCS |
| No.of feeders station | 136 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Intelligent electric feeder with double motor |
| X,Y,Z Axis drive way | High-end magnetic linear motor ＋ servo motor |
Application
Mounting machine T9-2S is mainly used for the production of soft light strips, and for the production of soft light strips of any length at ultra high speed, such as 0.5 meters, 1 meter, 5 meters, 10 meters, 50 meters, 100 meters, and 500 meters.

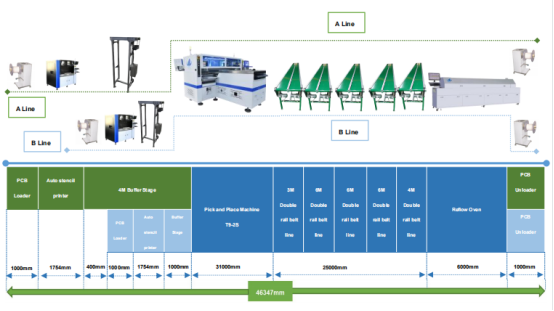

SMT line
Our company provides a complete mounting machine SMT wiring scheme, which can be adjusted according to your actual needs.

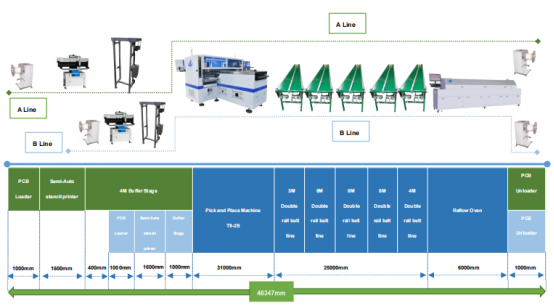

- T9-2S semi-automatic line
Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
FQA
- What are the terms of payment?
A: FOB Shenzhen is OK.
- How to pay after buying the product?
A:For payment, we only support T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
- How long is the product warranty period?
A:Effective within one year after installation.
